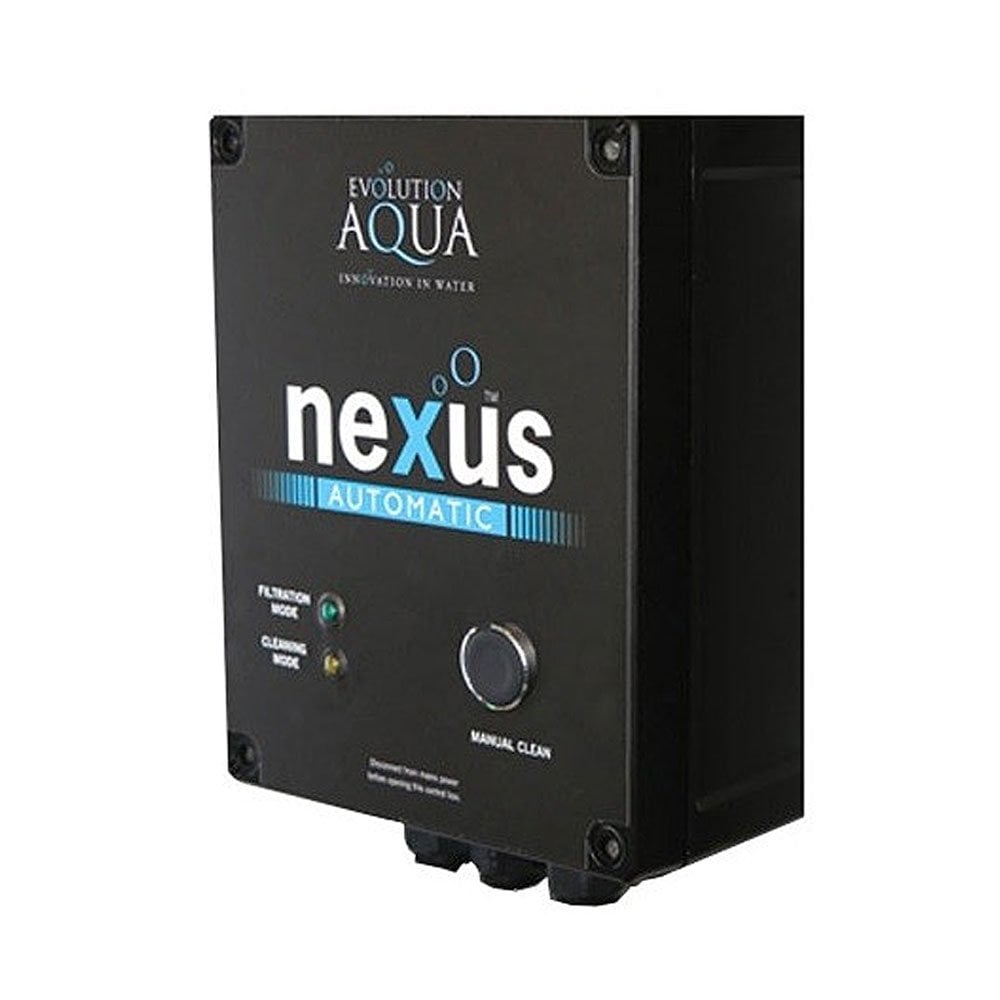

Evolution Aqua Nexus Automatic System for Gravity Fed Setups (320)

The Evolution Aqua Nexus Automatic System for Gravity Fed Setups (320) is a cutting-edge filtration enhancement designed to automate the cleaning process of Nexus 320 filters in gravity-fed pond systems. This system ensures optimal performance and water clarity by automating the cleaning cycle, thereby reducing manual maintenance and enhancing the efficiency of your filtration.

Key Features:

• Automated Cleaning Cycle: The system automates the cleaning process, eliminating the need for manual intervention.

• Adjustable Timer: Factory-set to clean every 3 days, the cleaning frequency can be adjusted from once an hour to once every 10 days to suit your pond’s requirements.

• Manual Override: A manual cleaning cycle can be initiated at any time with the touch of a button.

• Dual Float Switches: Provides added security by preventing overflows during the cleaning cycle.

• Easy Installation: Designed for straightforward integration with Nexus 320 filters manufactured post-2006.

How It Works:

1. Initiation: The adjustable timer triggers the cleaning cycle.

2. Pump Shutdown: The control box automatically switches off the circulating pump.

3. Equitation: The water level in the Nexus equalise.

4. Air Diversion: Air is diverted from the outer bio-chamber to the Easy to clean the media.

5. Waste Removal: After the media has been cleaned, the automated waste valve opens, and the Easy is drained to waste.

6. Final Flush: The inlet valve opens for a final flush of the Easy.

7. System Reset: The waste valve closes, air is diverted back to the bio-chamber, and the circulating pump is switched back on

8. Return to Filtration Mode: The Nexus returns to its normal filtration mode.

Specifications:

• Compatibility: Nexus 320 gravity-fed filters (post-2006 models).

• Cleaning Cycle Duration: Approximately 10 minutes.

• Timer Settings: Adjustable from once an hour to once every 10 days.

• Safety Features: Dual float switches.

• Installation: Designed for easy integration with existing Nexus 320 gravity-fed setups.

For more detailed information or to purchase the Evolution Aqua Nexus Automatic System for Gravity Fed Setups (320).
