Evolution Aqua Nexus Auto System For Pump Feed

Evolution Aqua Nexus Automatic System for Gravity Fed Setups (220)

The Evolution Aqua Nexus Auto System for Gravity (220) is a fully automated cleaning solution designed specifically for Nexus 220 filters operating in gravity-fed pond filtration systems. This innovative system automates the entire cleaning cycle, significantly reducing the need for manual intervention while ensuring your filter media remains clean and efficient.

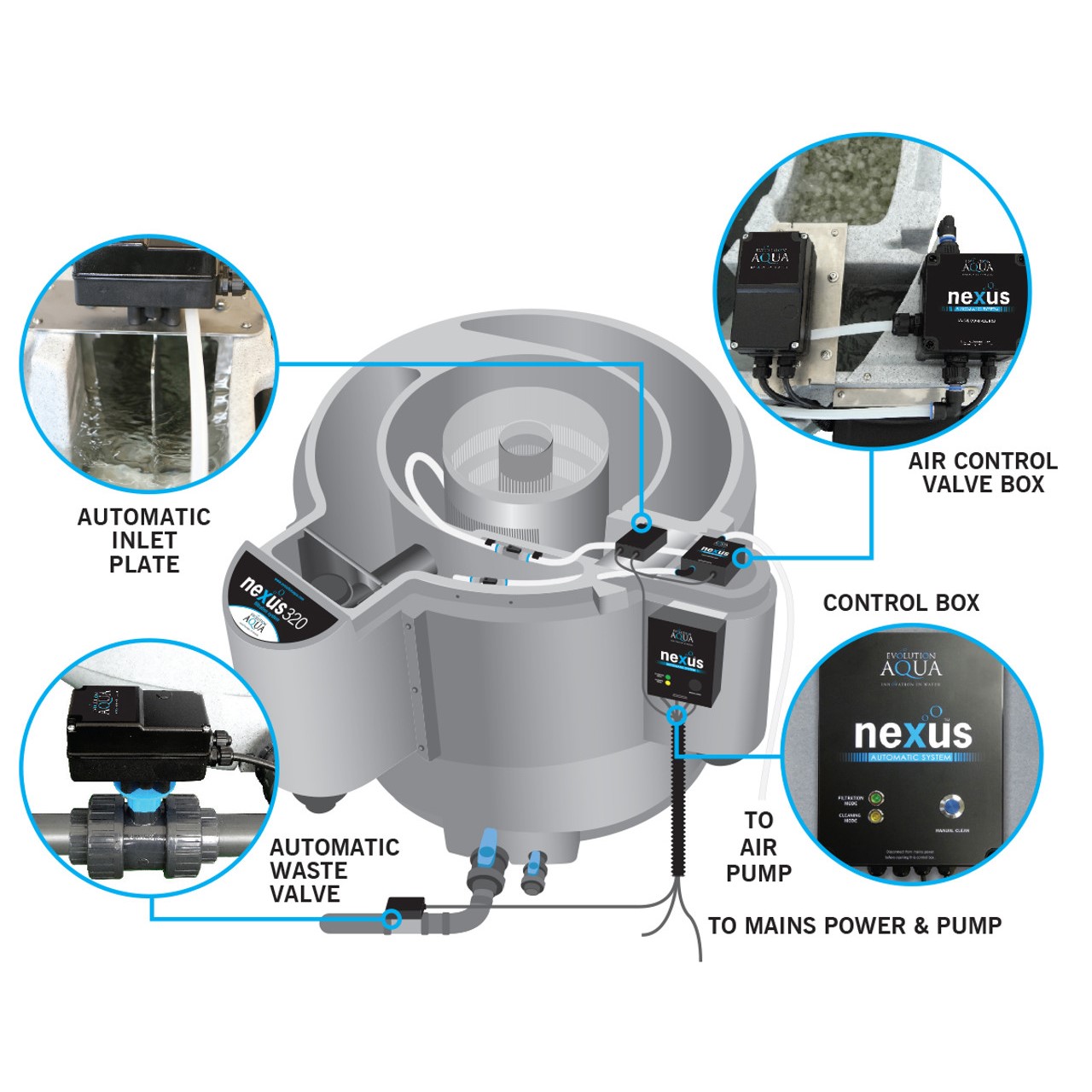

The system controls the inlet valve, waste valve, and air pump, coordinating their operation to thoroughly clean the K1 media inside the Nexus filter. By automating this process, the system maintains optimal filtration performance and water quality, keeping your pond healthy and crystal clear.

 Key Features:

• Automated cleaning cycle triggered by a built-in timer (default every 3 days, adjustable)

• Controls inlet and waste valves plus air pump for thorough media agitation and waste removal

• Easy installation with straightforward integration into existing Nexus 220 gravity-fed setups

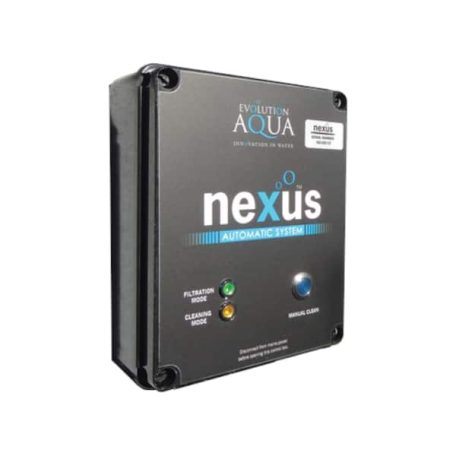

• Manual override button allows instant cleaning when needed

• Dual float switches provide safety by preventing overflows during the cleaning cycle

• Reduces maintenance time and effort, ensuring consistent filter performance

• Compatible with Nexus 220 models manufactured post-2006

How It Works:

1. The timer triggers the cleaning cycle, pausing normal filtration by closing the inlet valve.

2. Air flow is diverted from the biological chamber to agitate the K1 media, loosening trapped debris.

3. The waste valve opens to flush out dislodged dirt and sludge.

4. The inlet valve opens to allow a final flush, rinsing the filter media.

5. Air flow returns to normal, and filtration resumes automatically.

Specifications:

• Compatibility: Nexus 220 gravity-fed filters (post-2006 models)

• Cleaning Interval: Adjustable timer (default every 3 days)

• Safety Features: Dual float switches

• Cleaning Duration: Approximately 10 minutes per cycle

• Power: Requires standard mains power connection

• Installation: Designed for simple retrofit or new system installation

Benefits:

• Maintains peak filter efficiency with regular automated cleaning

• Saves time and effort with hands-free operation

• Enhances pond water clarity and fish health by preventing media clogging

• Offers peace of mind with built-in safety features

• Extends lifespan of your Nexus filter media

The Evolution Aqua Nexus Auto System for Gravity (220) is ideal for pond keepers seeking a reliable, easy-to-use solution to maintain their Nexus filter’s cleaning routine. Automate your pond maintenance and enjoy crystal-clear water all year round with this smart, efficient system
